All A-frames are constructed using aluminium. Each section is formed from one piece aluminium for strength, durability and reduced weight.
Aluminium ribs are then added to further strengthen the section and a large single pin hinge is welded into position which allows for the A-Frame to be split into two sections to reduce the weight while moving and for ease of both assembly and disassembly.
If required, the A-frame can be made height adjustable to suit your requirements.
The surface is coated with rubber granuals and if required rubber slats with rounded edges for safety are utilised. A full range of colours are available to match your club logo, or if for personal use, colours can be mixed and matched to suit your desire.
Designed to meet ANKC standards.

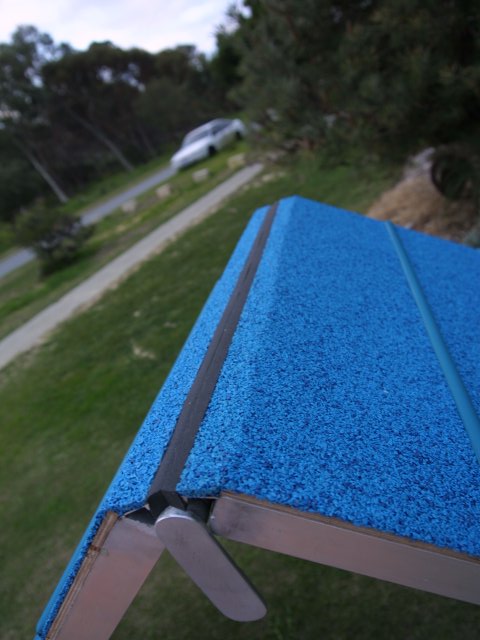

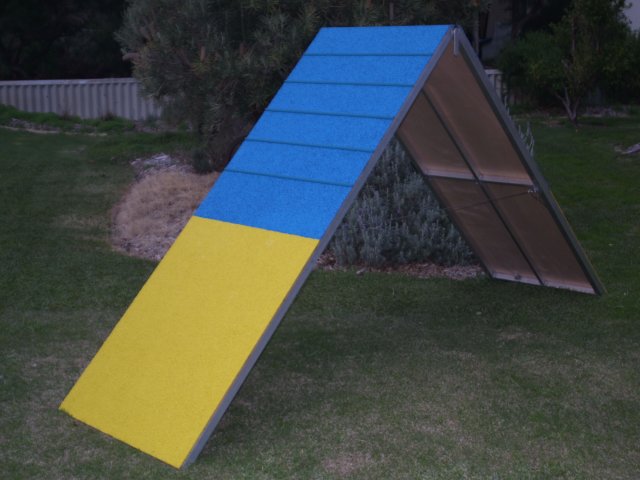

The A-Frame shown is adjustable height ANKC standard. For increased safety, the ramp-over above the hinge is designed to reduce the chance of injury to paws and claws being caught while negotiating the obstacle.
Image differs from new A-frame construction - wood deck no longer used.
ANKC 4 piece fold-up A-Frame
This all aluminium A-frame, although compact, is built to ANKC specification.
Each half section is hinged and securely locked on each side to ensure safety and stability.
The sections are coated with granulated rubber for traction.
The A-frame has a training height of 1000mm through to 1530mm full competition height as per ANKC requirements from ground to apex.
As a custom addition, the Frame shown has feet which raise the contact zone 15mm off the ground to allow greater stability on uneven ground. These feet are included in the 2400mm length requirement.

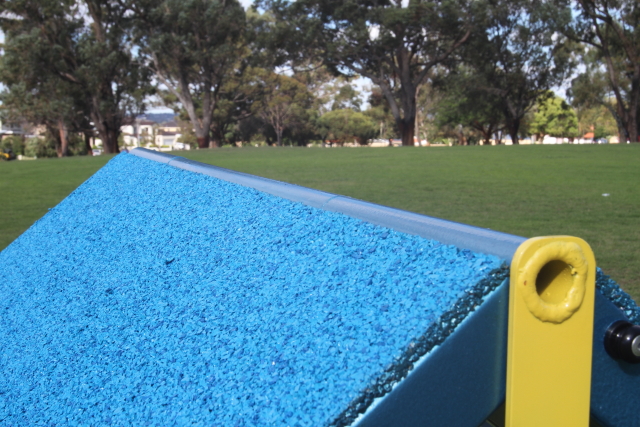

For safety the apex has zero gap and a large removable pin holds the two sections in place.
When stored the dimensions are length 1200mm x width 900mm with a combined depth of 190mm.

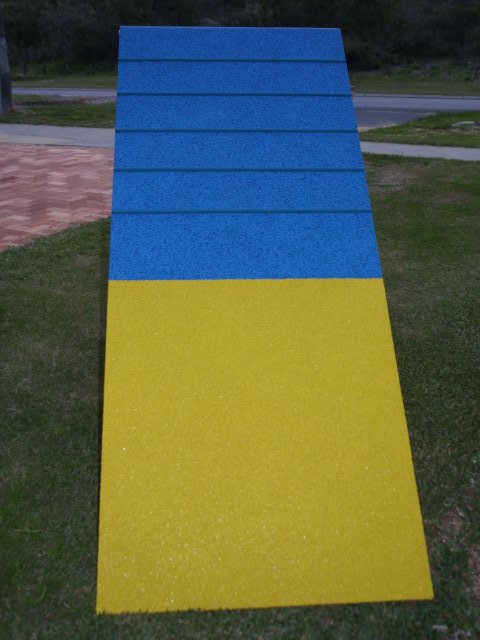

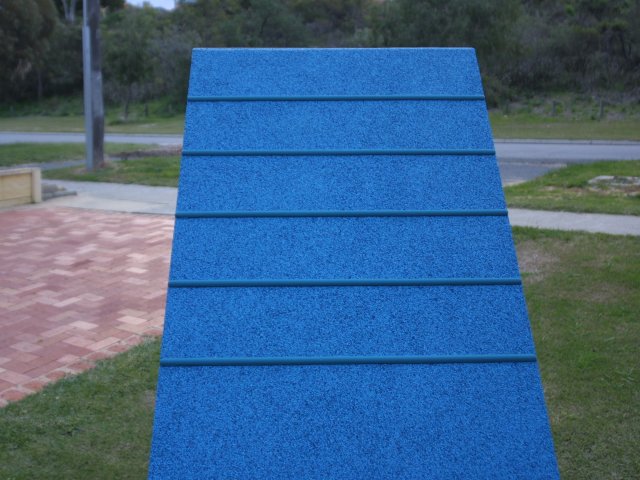

On request - slats can be included. Moulded from rubber granules, they can be the same colour as the main surface or if you choose, a different colour.
The unit shown is without slats as per customers request. Each section?measures 2400mm length x 900mm width.
One person can put together as shown below

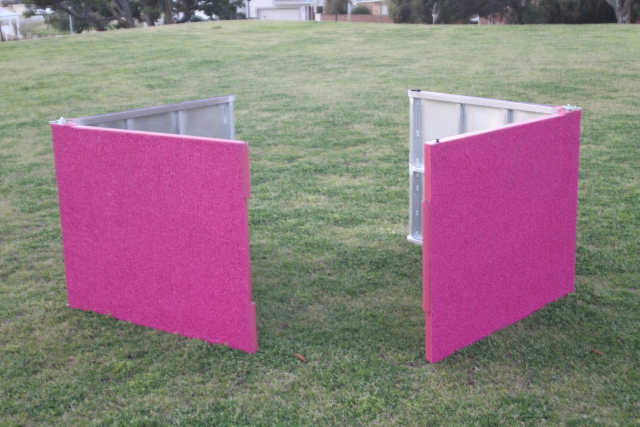

Place sections as shown Then join halves together Insert centre pin and lock halves

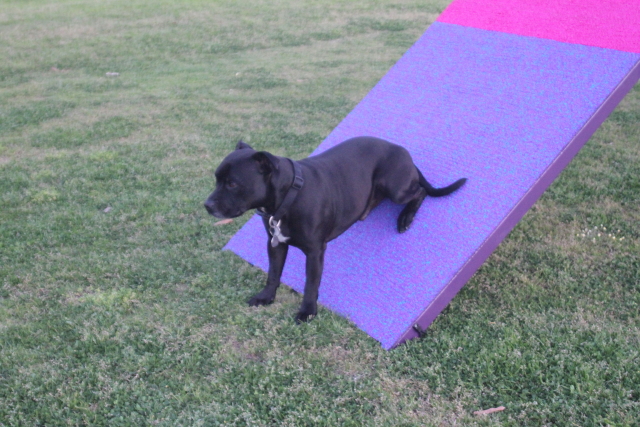

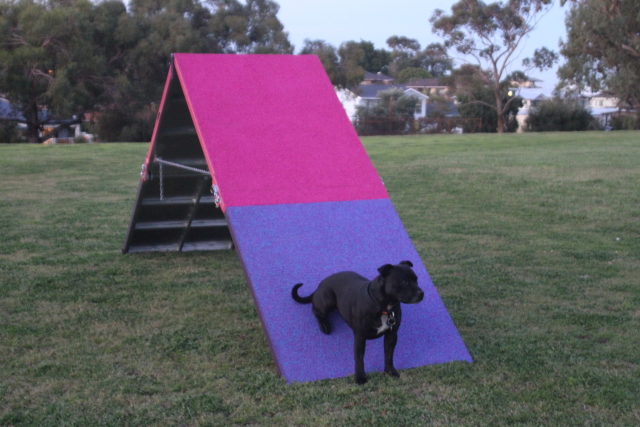

Fold up A-frame being tested for quality and stability by Maximus

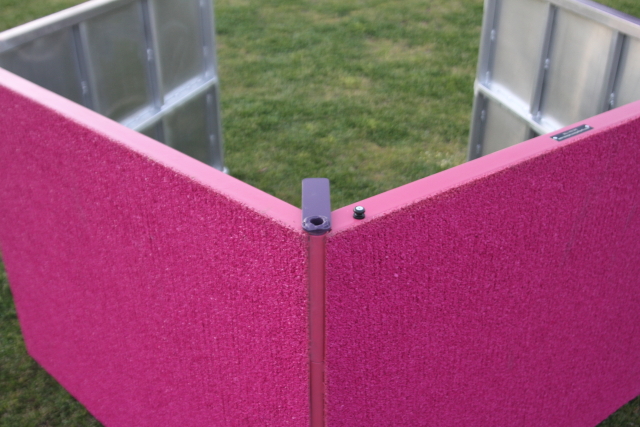

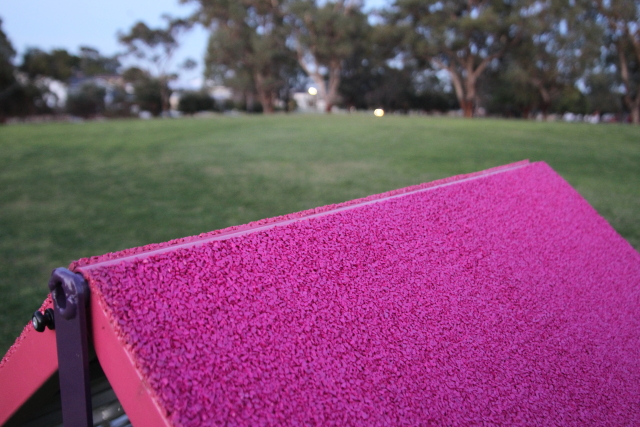

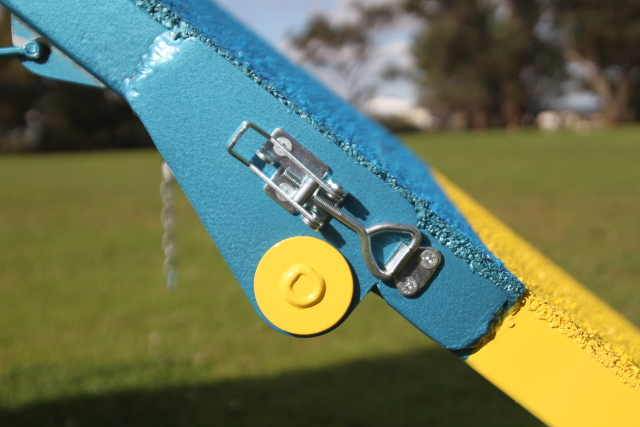

Hinge lock shown Zero gap apex minimises the chance of paws or nails being caught

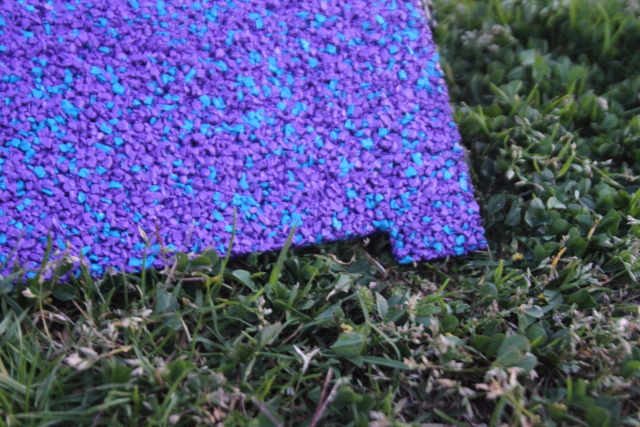

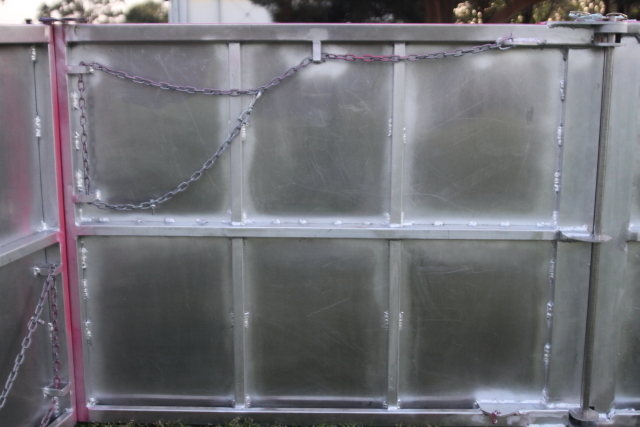

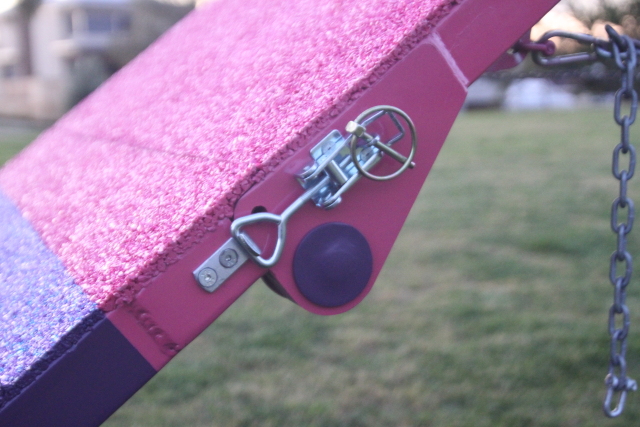

Chain is secured in place for storage The footing shown Sections folded compact and easy storage
Another Fold-up A-frame using blue mottle and yellow contact zones
